Pillow Block Bearing

Pillow block bearings (also known as plummer block bearings) are housings that contain mounted bearings. They are used to provide support for a rotating shaft, and the housing helps secure the bearing in place while maintaining proper alignment. Pillow block bearings come in a variety of designs, materials, and configurations, allowing them to handle different loads and operating conditions.

Key Features of Pillow Block Bearings:

1. Housing:

   • The housing is typically made from cast iron, cast steel, or stainless steel for strength and durability. It is mounted to a surface using bolts.

   • The housing includes pre-drilled holes for mounting, making installation easier.

2. Bearing Insert:

   • The bearing itself is housed inside the block and is often a deep groove ball bearing or roller bearing, depending on the application.

   • It can either be a self-aligning or non-self-aligning bearing.

3. Sealing:

   • Pillow block bearings often have seals or shields to protect the bearing from contaminants like dirt, dust, or moisture.

4. Lubrication:

   • Many pillow blocks have grease fittings that allow for easy relubrication, ensuring smooth operation over time.

5. Self-Alignment:

   • Some designs feature self-aligning capabilities, which help compensate for minor misalignments between the shaft and the housing, reducing stress on the bearing and extending its life.

Common Applications:

• Conveyor systems: Widely used in conveyor belts and material-handling systems.

• Agriculture: Found in agricultural machinery such as combines, tractors, and other equipment.

• Industrial Equipment: Used in pumps, fans, compressors, and other machinery.

• Textile and Paper Industries: Employed in rollers, mills, and other high-speed applications.

• Food Processing: Stainless steel pillow blocks are used for hygienic purposes where corrosion resistance is required.

Types of Pillow Block Bearings:

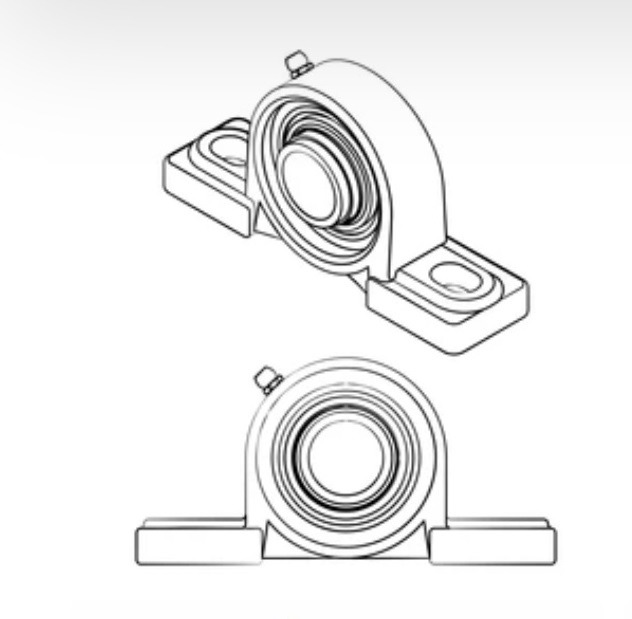

1. UCP (Standard pillow block): The most commonly used type, featuring a cast iron housing and a single-row deep groove ball bearing insert.

2. SUCP (Stainless steel pillow block): These are designed for environments that require corrosion resistance.

3. Thermoplastic Pillow Block: Made from high-strength plastic, typically used in industries requiring cleanliness, such as food processing.

Pillow block bearings are favored for their ease of installation, durability, and adaptability in various mechanical setups.
